PL Series PL-501-NL Inline Horizontal Wrap-Around Labeling System

A fully automatic labeler for round containers with exceptional speed, flexibility and dependability

Overview
Features
Specs

Flexible design

The PL-501-NL is designed to apply pressure-sensitive labels to round containers. The machine was created to have one machine label both the body and neck for the food and beverage industries, with an optional two body front and back label. The machine’s speed adjusts according to your container’s surface.

Simple to use

Machine adjustments and changeovers are quick and simple, thanks to the PL-501-NL’s easy-to-operate features.

Easy to maintain

The PL-501-NL is made of 304 stainless steel and anodized aluminum and carefully treated to guard against the effects of harsher environments. This durability translates into a solid choice for labeling machine longevity. In strict compliance with Good Manufacturing Practices (GMP) standards, the PL-501-NL is dependable, reliable and easy to maintain.

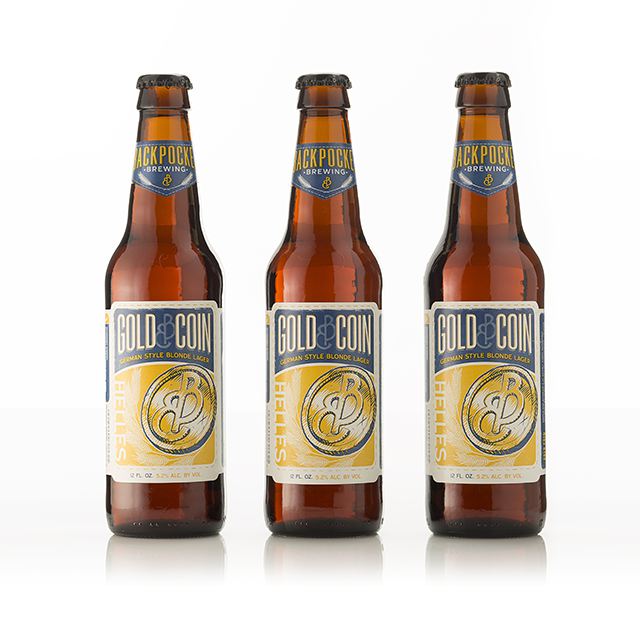

Featured Samples

Flexibility

  • The PL-501-NL modular design allows for easy machine conversion and customization. The machine’s standard one-touch screen and label sensors make it simple to adjust for beer bottle and other various applications. And, with the manual position setting, your labels are placed accurately on the product, each and every time.
  • Future upgrades are simple. Thanks to the PL-501-NL’s thermal or hot foil printer controls, you can easily incorporate a printer if the need should arise. This integrated feature lets printers work in sync with the labeler to ensure accurate code placement. The result? Easy label customization you can turn on or off.
  • Depending on your needs, this machine can be used for in-line automatic or semi-automatic applications.

Efficiency

  • The auto label-set feature confirms label sensitivity by detecting the separation between each label. With one push of a button, labeling is set up – and positioned correctly.
  • The missing label-detect feature locates missing labels on the roll stock, and instantly shuts off the machine if one is found. This preventative feature ensures each product is labeled appropriately.

Accuracy

  • The Auto-Length Set feature ensures accuracy.
  • With one pass the machine will apply a body and neck label.
  • The PL-501-NL’s controls are fully synchronized, ensuring that all components run at the same speed.
  • With the extended wrap station, the machine maintains control of the bottle to make sure body and neck are correctly aligned.

Productivity

  • A production preset function means the machine automatically stops once the predetermined quantity of products has been labeled.
  • The label count feature lets you precisely track progress at any point during the production run.
  • The container/production run counter lets you see the exact production number for the day.
  • The PL-501-NL features a touchscreen control system with job memory. So, even after the machine sits idle for long periods, you benefit from a battery-free microprocessor control system that stores default settings. Up to 30 settings can be stored for future use, so you don’t have to waste time re-entering the necessary information.

Practicality

  • The PL-501-NL can be easily and conveniently moved to other production areas, allowing for changes in production or products.
  • The height of the machine’s conveyor is adjustable, affording you exceptional convenience and flexibility.
  • All Pack Leader USA labelers are made of 304 stainless steel and anodized aluminum. This extremely durable metal is specially treated to guard against rusting and other effects from harsher environments.

Compliance

All Pack Leader USA labelers are manufactured in compliance with Good Manufacturing Practices (GMP) standards and meet the strict ISO 9001 quality control procedures. So, you can have confidence undergoing required quarterly inspections from industry compliance auditors.

Label Types

Horizontal Wrap-Around, Neck and Body Labeler

Speed

  • Maximum Dispensing Speed : 131.2’/min (40m/min)
  • Maximum Conveyor Speed : 72.2’/min (22m/min) *optional customization

Dimensions

  • Dimensions L-W-H : 118” x 51” x 54” (2997mm x 1295mm x 1371mm)
  • Maximum Label Size : 6” x 11.8” (152mm x 300mm)
  • Maximum Container Width : 4” (101mm)
  • Maximum Container Height : 6” (152mm)
  • Conveyor Belt Width : 4” (101mm)
  • Spool Diameter : 14” (356mm)
  • Inner Core : 3” (76mm)

Power

  • Voltage : 110/220 VAC 50/60 HZ 1 Phase
  • Power in KW : .760
  • Drive : Stepper Motor

Net Weight

Approx 580 lbs (263 kgs)

Conveyor Height

33-41” (860-1050mm)

Controls

Delta Color Touch Screen
